ORIC Update

I had turned the page but it was certainly out of nostalgia that I decided to take an interest in ORIC again, one of my best Christmas gifts.

What I'm getting myself into, I don't yet know, programming or hardware development, time will confirm. For now, we are going back to the world of the 80s by bringing its 21st century know-how.

The basis of all development is based on clear and accurate documentation. Unfortunately the technology of the 80s did not leave the best traces in either quality or quantity.

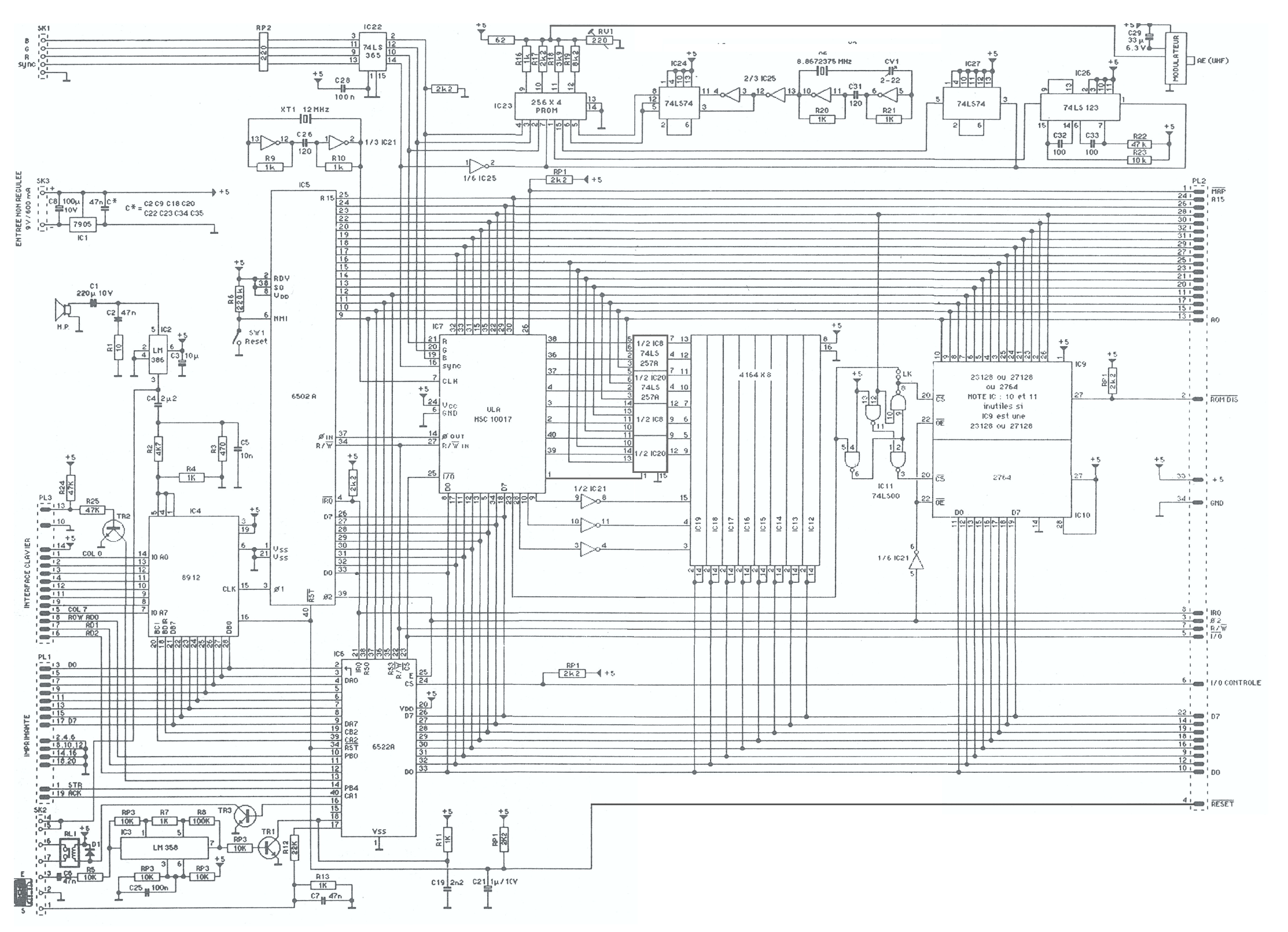

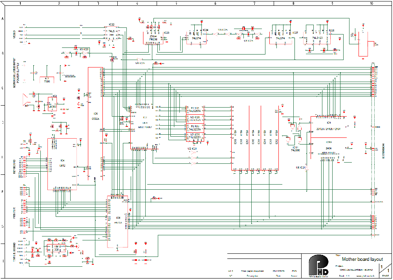

Below is the best image of the ORIC motherboard layout I found as well as the AUTOCAD version that I made and which is available in PDF here. If you are interested in the AUTOCAD version, let me know. If you have any document on ORIC do not hesitate.

Let the adventure begin!
